Custom Metal 0.4kV LV Power Distribution Cabinet Floor Standing Industrial Use
Product Details:
| Place of Origin: | China |
| Brand Name: | Dong Sheng Yuan |
| Model Number: | XL |
Payment & Shipping Terms:
| Delivery Time: | T+30 |
|---|---|
| Payment Terms: | TT |
|
Detail Information |
|||
| Material: | Metal | Voltage: | 220V |
|---|---|---|---|
| Frequency: | 50Hz | Installation Method: | Floor Mounted |
| Application: | Residential, Commercial, Industrial | ||
| Highlight: | Custom Metal Power Distribution Cabinet,0.4kV Power Distribution Cabinet,Industrial Use Power Distribution Cabinet |
||
Product Description

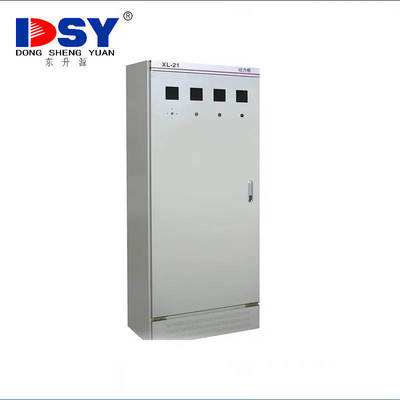

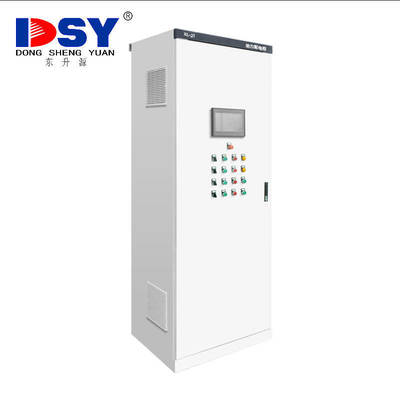

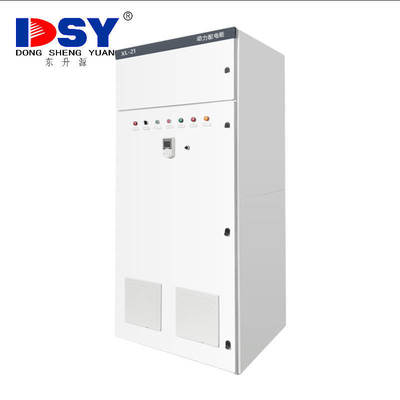

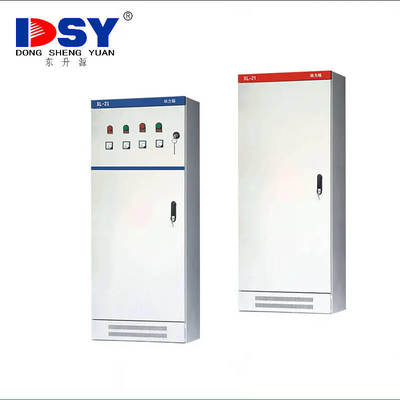

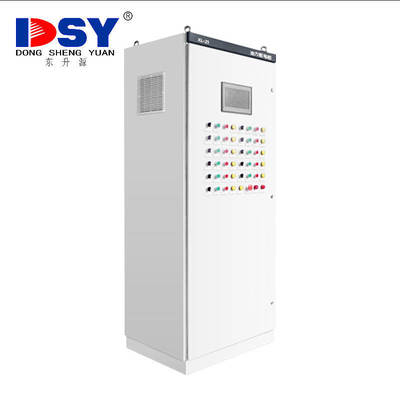

0.4kV Power Cabinet (XL)
Product Overview
The XL-21 LV Power Distribution Cabinet is designed for power and lighting distribution in three-phase, three-wire, three-phase, four-wire, and three-phase, five-wire distribution systems. With an AC 50Hz rated voltage of 660V and transformer capacity of 1000kVA or less, it is suitable for various industrial applications, including hotels, hospitals, ports, factories, and mines.
This cabinet serves as a wiring device for switching construction lines, dividing, switching, and marking branch lines, facilitating wiring and line checking. It is primarily used for circuit breakers, current/voltage transformers, transformers, and metering secondary line terminals in power plants and substations.
Operating Conditions
- Ambient temperature: -5℃ to +40℃ (24-hour average: +35℃)
- Altitude: ≤2000m
- Relative humidity at 40℃: 50%
- No vibration and maximum mounting angle: 5°
- The indoor environment must be dust-free, non-corrosive, and protected from rainwater.
Model and Specifications
Technical Specifications
| No. | Item | Unit | Parameter |
|---|---|---|---|
| 1 | Main Circuit Rated Voltage | V | AC380 |
| 2 | Auxiliary Circuit Rated Voltage | V | AC220/AC380 |
| 3 | Rated Frequency | Hz | 50 |
| 4 | Rated Insulation Voltage | V | 660 |
| 5 | Rated Current | A | ≤800 |
Dimensions and Installation
| Item | Width (A) | Height (H) | Deep (B) | Front and Rear Door (deep B) |
|---|---|---|---|---|
| Floor-mounted Outdoor Power Cabinet | 500 | 700 | 200 | – |
| 600 | 800 | 250 | – | |
| 600 | 1000 | 350 | 400 | |
| 600 | 1200 | 350 | 400 | |
| 700 | 1500 | 350 | 450 | |
| 700 | 1700 | 350 | 450 | |
| 800 | 2000 | 450 | 550 |
For additional information, please refer to the PDF document or contact our technical team.
Want to Know more details about this product
