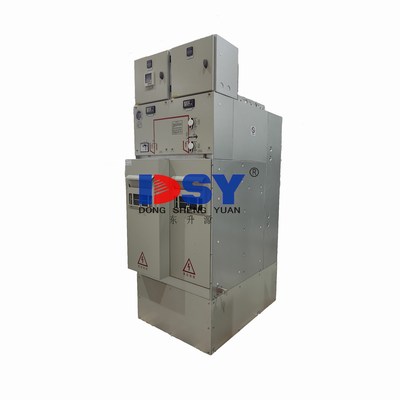

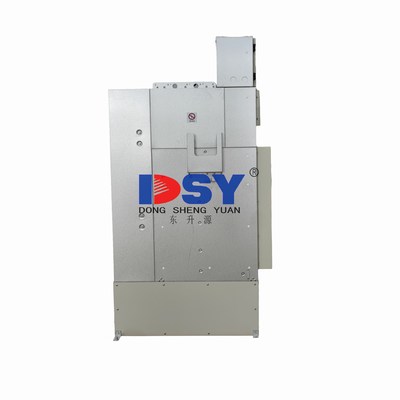

10KV SF6 Gas Insulated Ring Main Unit Switchgear Medium Voltage 630A To 3150A Current
Product Details:
| Place of Origin: | China |
| Brand Name: | Dong Sheng Yuan |
| Model Number: | 10KV SF6 Gas Insulated Ring Main Unit |
Payment & Shipping Terms:
| Delivery Time: | T+30 |
|---|---|
| Payment Terms: | TT |
|
Detail Information |
|||
| Installation: | Indoor/Outdoor | Modular Design: | Yes |
|---|---|---|---|
| Current: | Up To 4000 A | Compact Design: | 3150A |
| Temperature Range: | -40°C To +55°C | Insulation: | SF6 Gas |
| Type: | Gas Insulated Switchgear | Safety: | High |
| Maintenance: | Low | Life Expectancy: | Over 30 Years |
| Highlight: | 10KV SF6 Ring Main Unit,SF6 Gas Insulated Ring Main Unit,3150A Current Gas Insulated Switchgear |
||
Product Description
Dongshengyuan provides complete solutions for SF6 gas-insulated switchgear with comprehensive voltage and current ratings.
| Parameter | Range |
|---|---|
| Voltage Rating | 12kV, 24kV to 36kV |
| Current Rating | 630A to 3150A |
| Short Circuit Current Rating | 16kA to 40kA |
- RMR RMU: Secondary switchgear rated up to 40.5kV, 1250A, 25kA
- RGIS C-GIS: Primary switchgear rated up to 40.5kV, 3150A, 40kA
- RMC M-GIS: Economic type GIS switchgear for connection from RMU to C-GIS, rated up to 40.5kV, 1250A, 31.5kA
A Ring Main Unit (RMU) is a completely sealed unit utilizing SF6 gas or other insulation materials. DSY's RMU represents a compact, gas-insulated switchgear solution.
Standard RMU configurations include a minimum of three ways with primary switching devices that may be switch disconnectors, fused switch disconnectors, or circuit breakers (VCB/GCB).
The typical configuration features a primary circuit breaker (vacuum or gas type) with protective relay capabilities, ranging from basic self-powered models to advanced units with communication functions.
Standard RMU ratings typically reach 40.5 kV voltage and 630 A current capacity. Contact us for custom LD request combinations.
