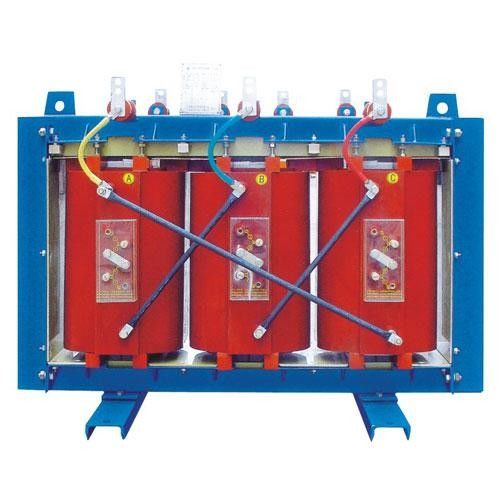

20KV 500 KVA Transformer 3 Phase

20KV 500 KVA Transformer 3 Phase
20KV 500 KVA Transformer 3 Phase

Large Image :  20KV 500 KVA Transformer 3 Phase

Product Details:
Place of Origin: China
Brand Name: KNKONG
Certification: ISO IEC GB
Model Number: SCB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1000-2000 Each
Packaging Details: Standard export packaging
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 500 unit per month

20KV 500 KVA Transformer 3 Phase

Description
Working Voltage: 10/20/35KV Working Capacity: 30-2500KVA
Working Frequency: 50Hz Standards: ISO IEC GB
OEM/ODM: Available Manufactory: KNKONG
High Light:

20KV 500 KVA Transformer 3 Phase

,

50Hz 500 KVA Transformer 3 Phase

,

35KV 500 KVA Transformer

SCB 10-35KV 2500KVA 3-phase power Transformer ISO IEC GB

10KV 20KV 35KV SCB Dry Type Power Transformer

Capacity:30~2500KVA
epoxy resin cast
The core is made of high permeable grain orientated silicon sheet and cast with imported epoxy resin
Inquire

Product Introduction

Dry-type transformers are widely used in local lighting, high-rise buildings, airports, terminal CNC machinery equipment and other places. Simply put, dry-type transformers refer to transformers whose cores and windings are not immersed in insulating oil.

20KV 500 KVA Transformer 3 Phase 0





Structural features
Because dry-type transformers have the advantages of strong short-circuit resistance, small maintenance workload, high operating efficiency, small size, and low noise, they are often used in places with high performance requirements such as fire prevention and explosion protection.
1. It is safe, fireproof, pollution-free, and can be directly operated in the load center;
2. Using domestic advanced technology, high mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, high reliability and long service life;
3. Low loss, low noise, obvious energy-saving effect, maintenance-free;
4. Good heat dissipation performance, strong overload capacity, and capacity operation can be increased when forced air cooling;
5. Good moisture-proof performance, adapt to high humidity and other harsh environments;



10KV-SCB dry type transformer main technical data



Rated power (kVA)



High voltage (kV)





H.V.Tap (kVA)



Rated Frequency (Hz)



Low Voltage (kV)







Vector group



Short circuit impedance





No-load loss(w)





On-load loss(w)



No-load loss circuit (%)

Main Body (without shell)




L*W*H(mm)



Weight (Kg)

20

6

6.3

6.6

10

10.5

11





±5%

or

+2×2.5%







50







0.4





Yyn0 Dyn11







4

190 710 2.3 585*400*561 205
30             190 710 2.3 585*400*561 230
50             270 1000 2.2 585*400*636 300
80             370 1380 1.7 700*500*759 395
100             400 1570 1.7 710*500*779

475
